SuperATV Polaris Ranger XP 1000 Heavy Duty Prop Shaft - Rhino Driveline

SuperATV Polaris Ranger XP 1000 Heavy Duty Prop Shaft - Rhino Driveline

Elevate your Polaris Ranger XP 1000 & Crew's performance with a SuperATV Rhino Driveline Prop Shaft. This heavy-duty upgrade is engineered to allow your vehicle to tackle demanding terrain and tasks with unprecedented power and reliability. Featuring maximized shafts and advanced U-series U-joints, the Rhino Driveline Prop Shaft is designed for exceptional torque handling, reduced wear, and consistently smooth operation. SuperATV's expertise in off-road component manufacturing ensures a bolstered driveline backbone, transforming how you drive your Polaris Ranger XP 1000.

Superior Construction: The Rhino Driveline prop shaft boasts a robust construction, surpassing OEM specifications. It features significantly thicker .120” tube walls and a larger 1.75” diameter tube, providing enhanced durability over the thinner OEM prop shaft. Unlike the standard carbon steel used in OEM components, SuperATV's Rhino Driveline is crafted from high-strength chromoly steel alloy. This superior material composition makes it exceptionally resilient against the rigors of challenging environments like creeks, rocks, mud, and steep hills, ensuring it's built for aggressive riding styles.

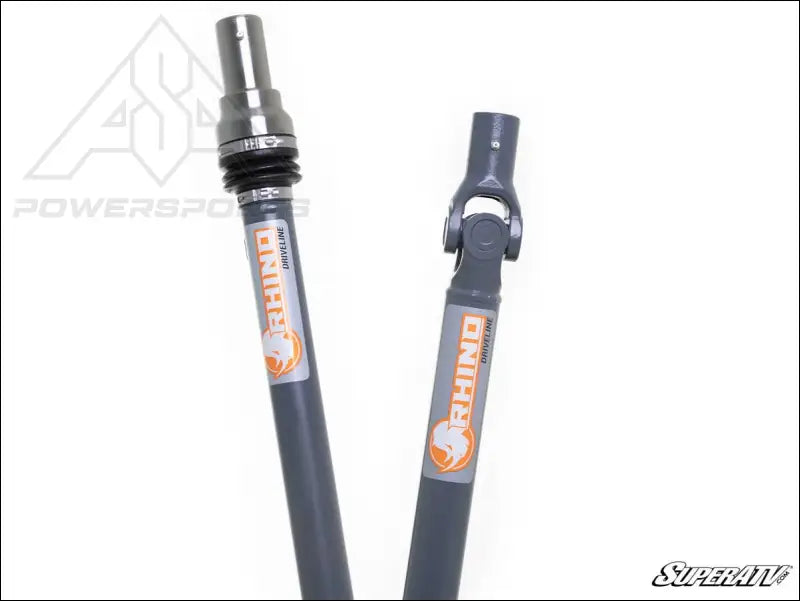

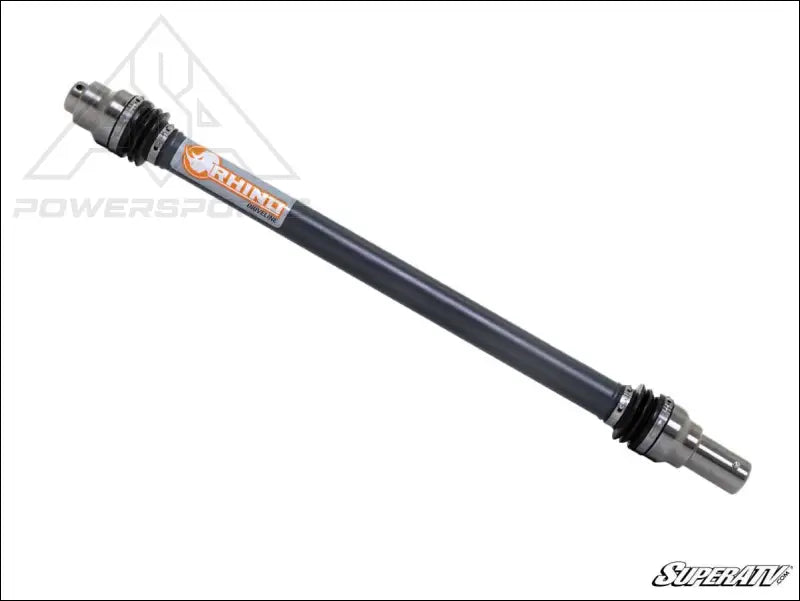

C-Series: For the ultimate in strength and protection, the C-Series prop shafts incorporate a high-performance CV joint. Similar to an axle's design, this CV joint includes a robust chromoly cage, spider, and cup. Its inherent strength is further enhanced by a high-quality boot, providing superior protection against harsh elements. A key advantage of the C-series CV joint is its ability to eliminate common driveline issues such as rattle, wobble, or balance problems, offering a consistently smooth and maintenance-free operation. This makes it an intelligent choice for various riding styles, from utility to extreme off-roading.

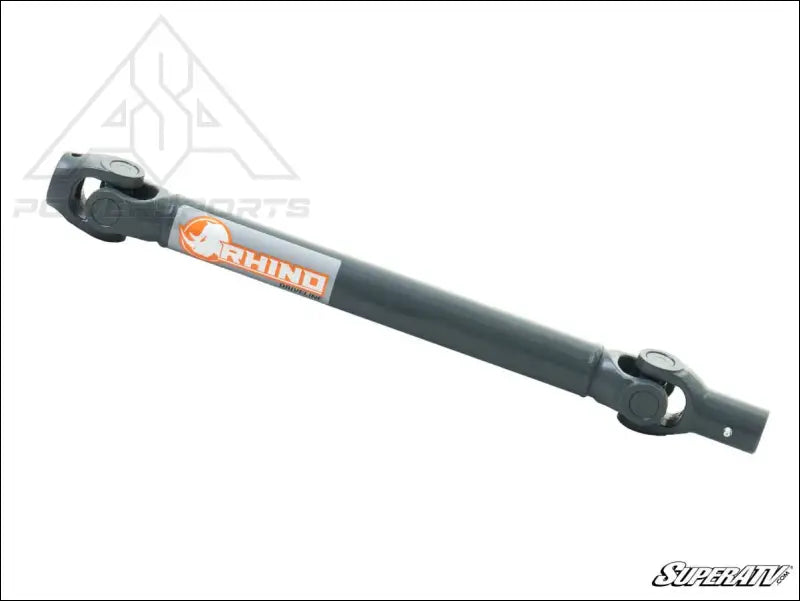

U-Series: The U-Series U-joints are designed to mirror the traditional needle bearing U-joint structure found in stock components, but with significant strength enhancements. Utilizing superior 4340 chromoly steel for the body, the U-Series U-joints are built to outperform and outlast standard OEM U-joints, enduring more aggressive rides and extending the lifespan of your driveline. These U-joints are phased and balanced to prevent vibrations, ensuring smooth operation, and are sealed for long-lasting performance in any riding condition.

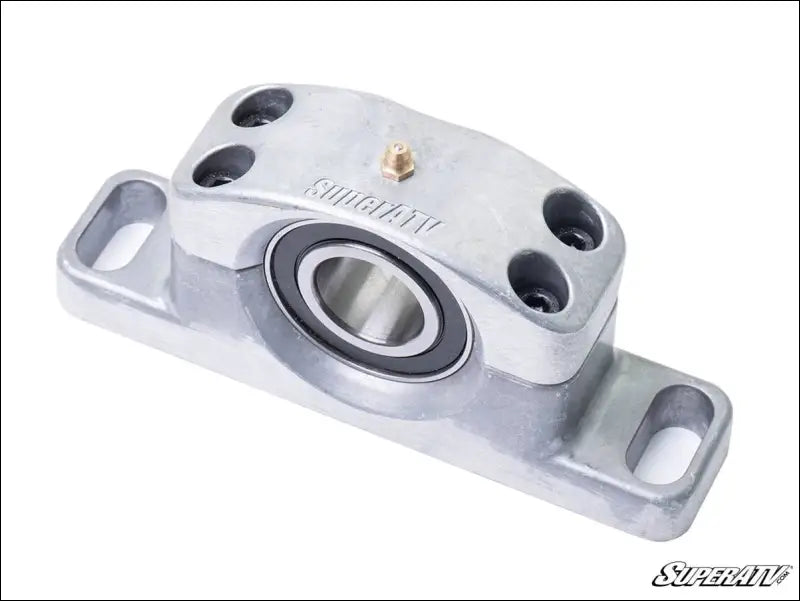

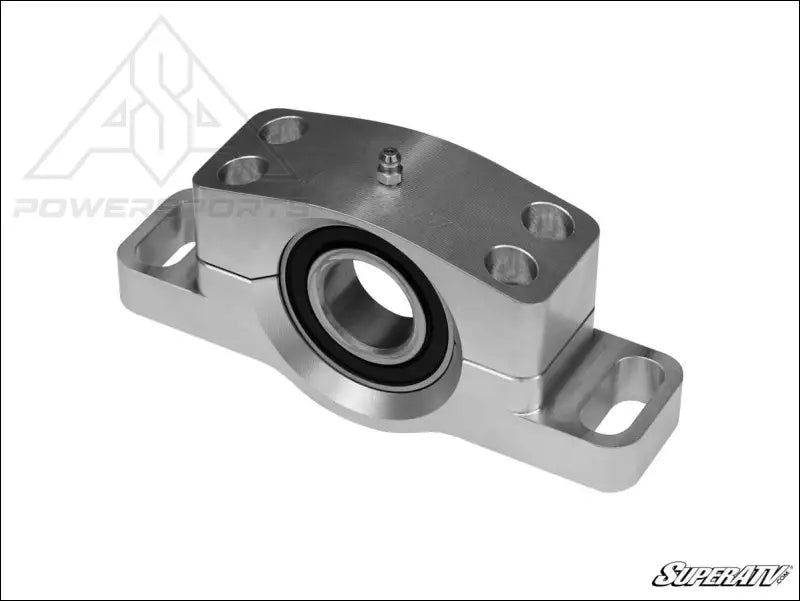

Use with Our Cast or Billet Aluminum Carrier Bearings: Rhino Driveline Prop Shafts are exclusively compatible with SuperATV Carrier Bearings, ensuring a perfect fit and optimal performance. These carrier bearings are engineered for excellence, featuring a greaseable, self-aligning design and an innovative two-piece construction that simplifies both installation and maintenance. Riders can choose from two premium material options: the A380 cast aluminum carrier bearing offers long-lasting reliability and is significantly stronger than stock alternatives. For those seeking maximum performance and pushing their limits, the 6061 billet aluminum carrier bearing is the ideal choice. This 100% American-made billet option is precision CNC machined, providing superior strength compared to cast versions.

Features:

Rhino Driveline Shaft:

• Shaft diameter is .5″ larger than stock
• Shaft wall is .120″ vs stock’s .088″
• Made of 4130 chromoly tubing (stock is plain carbon steel)

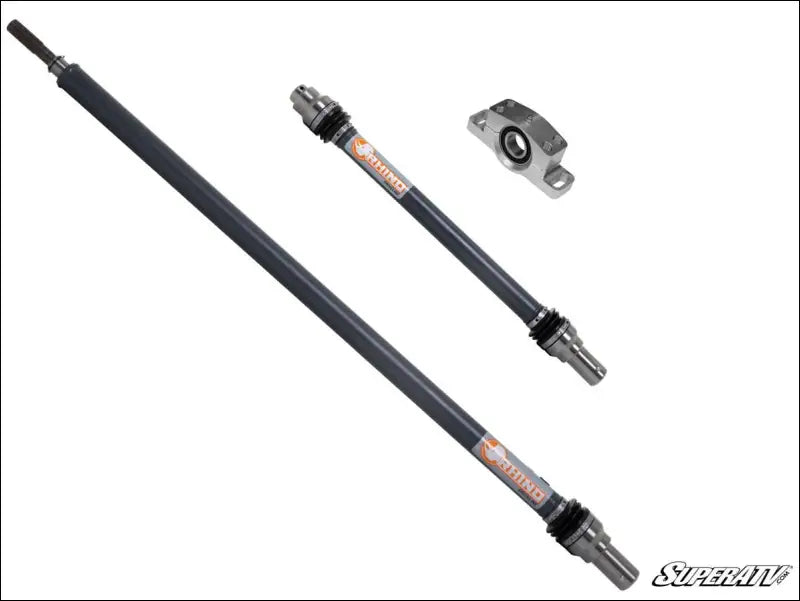

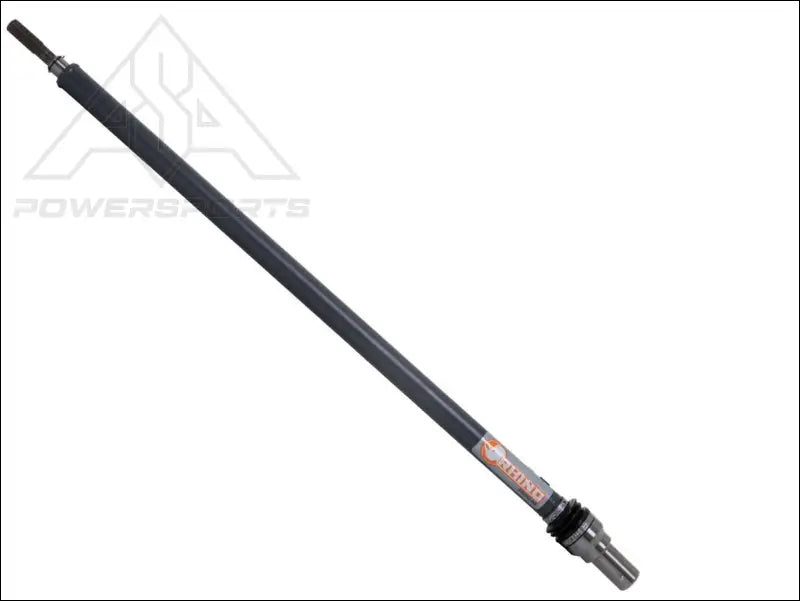

C-Series:

• Uses a strong and versatile CV joint
• Made of 4340 chromoly steel
• Sealed for any riding environment
• No vibrations, no wobble, no maintenance

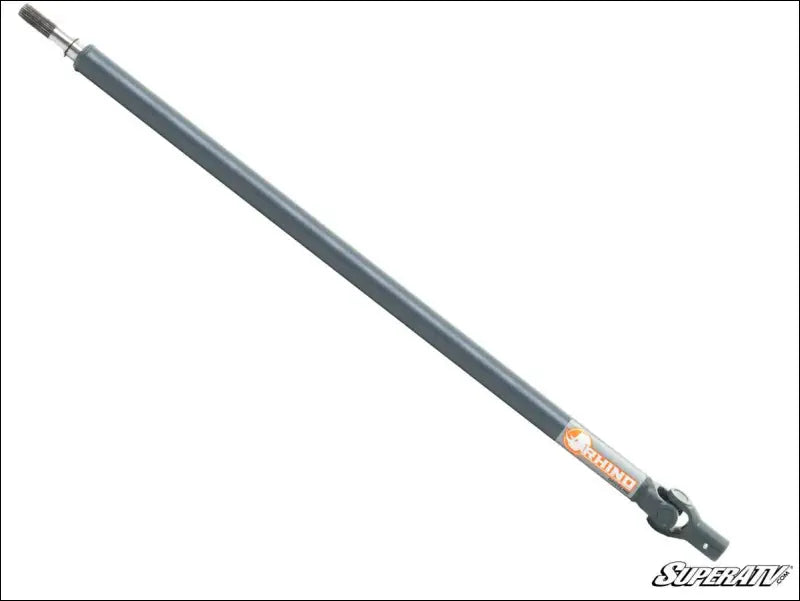

U-Series:

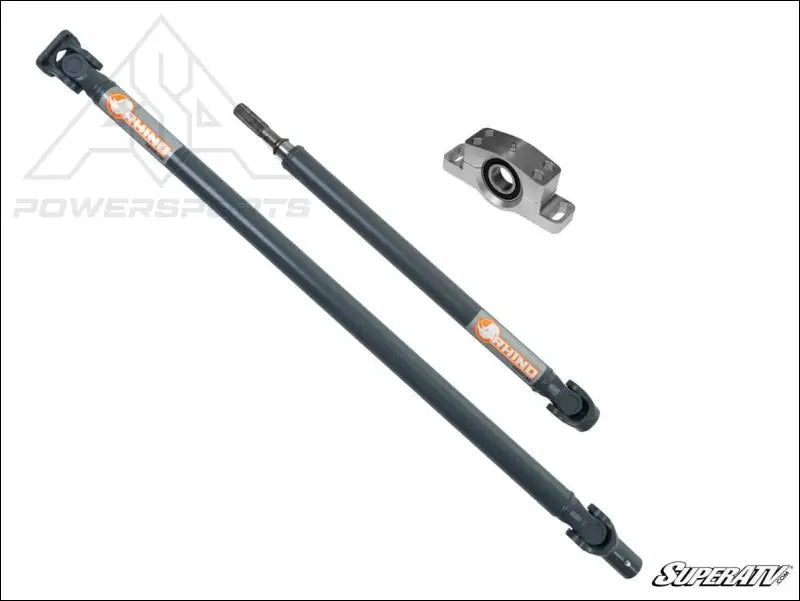

• Uses a traditional needle-bearing U-joint
• Made of 4340 chromoly steel
• Phased and balanced—no vibration
• Sealed for long lasting operation

Fitment:

U-Series:

• Polaris Ranger XP 1000 : 2017
• Polaris Ranger XP 1000 Crew : 2017-2018

C-Series:

• Polaris Ranger XP 1000 : 2018+
• Polaris Ranger XP 1000 Crew : 2019+
• Polaris Ranger XP 1000 High Lifter Edition : 2019+
• Polaris Ranger XP 1000 High Lifter Edition Crew : 2019+
• Polaris Ranger XP 1000 NorthStar Edition : 2019+
• Polaris Ranger XP 1000 NorthStar Edition Crew : 2019+
• Polaris Ranger XP 1000 Back Country Edition : 2019
• Polaris Ranger XP 1000 Back Country Crew Edition : 2019
• Polaris Ranger XP 1000 Texas Edition : 2020+
• Polaris Ranger XP 1000 Texas Edition Crew : 2020+
• Polaris Ranger XP 1000 Trail Boss : 2021+
• Polaris Ranger XP 1000 Trail Boss Crew : 2021+
• Polaris Ranger XP 1000 Waterfowl Edition : 2021+
• Polaris Ranger XP 1000 Waterfowl Edition Crew : 2021+
• Polaris Ranger XP 1000 Big Game Edition : 2021+
• Polaris Ranger XP 1000 Big Game Edition Crew : 2021+
• Polaris Pro XD 2000G : 2021+
• Polaris Pro XD 2000D : 2021+

Replaces OEM Part:

Front :

• 1333146, 1334482, 1334249

Rear :

• 1333147, 1334359, 133374

Notes:

• Rhino Driveline Prop Shafts are compatible with SuperATV Carrier Bearings only.

Instructions:

• Instructions - PRP01-009F
• Instructions - PRP01-010-F-R
• Instructions - PRP01-018
