Can-Am Renegade Outlander 4" Portal Gear Lift 2019+
$2,649.95
$3,047.95
Unit price
/
Unavailable
Shipping calculated at checkout.
Can-Am Renegade Outlander 4" Portal Gear Lift 2019+ - Cast / No, I already have SATV trailing arms / 15 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
We Ship FedEx, UPS, USPS, GLS. Typically, shipping transit times are anywhere
from 3-7 business days depending on location. We utilize warehousing
nationwide to ensure we get you your order as soon as possible! Shipping
charges are calculated at checkout.
Can-Am Renegade Outlander 4" Portal Gear Lift 2019+
From
$2,649.95
$3,047.95
Unit price
/
Unavailable
Description
Description
-

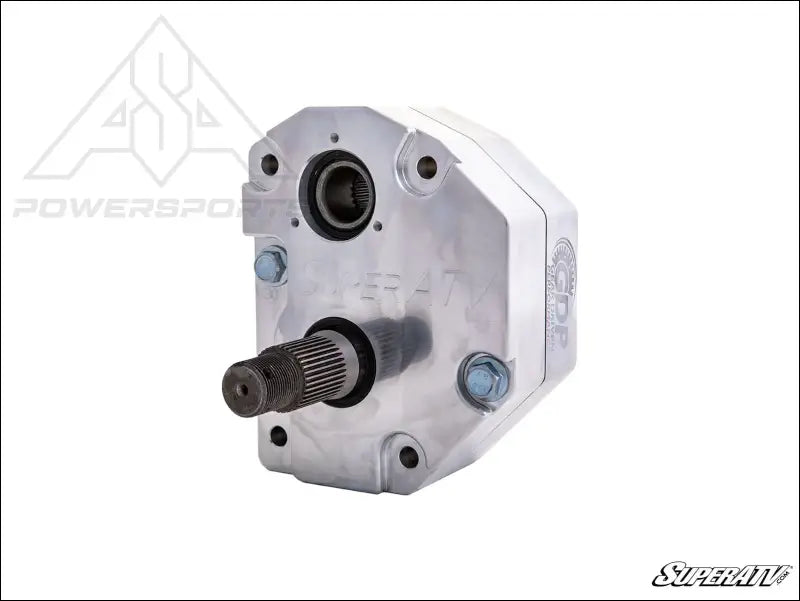

GDP Portals Give Your Renegade More Power and Performance
Want more ground clearance, boosted torque, and larger tires? Get SuperATV’s 4” GDP Portal gear lift designed specifically for your Can-Am Renegade. It lifts your ATV by 4 inches, gives you15% or 30% gear reduction options and fits bigger tires. You can even choose billet aluminum housings to maximize durability and strength. GDP gives your Renegade the power and performance you’ve always wanted.- Gives you a 4” lift and a gear reduction in one package
- Choose a 15% or 30% gear reduction
- Maintains OEM suspension angles
15% and 30% Gear Reduction Options Let You Ride How You Want
Thanks to the built-in gear reduction, GDP portals make your rides more fun and versatile. You get extra torque and acceleration—tough terrain is no match for GDP. Whether you're rocking oversized tires or tacking on mud and rocks, these portals give you power. Opt for the 15% gear reduction for a high top speed with plenty of torque, or go all out with the 30% to ensure that big tires and thick mud won't slow you down.
GDP Portals Lower Strain on Your Drivetrain
GDP Portals put the gear reduction right in the hub at the very end of your drivetrain. This lets all components of your Renegades drivetrain benefit. Your axles, differential, prop shaft, and transmission will work less and last longer with GDP portals. It's a win-win.
The Toughest Portals You Can Get for Your Renegade
Dependability is non-negotiable when you’re riding solo way out in the backcountry. That's why our cast and 6061 billet aluminum housings are designed to tackle any challenge that comes your way. They’re combined with our advanced steel alloy backing plates to deliver unmatched strength. If you want to take on every weekend adventure with confidence, don’t compromise—GDP is your go-to choice.- Our housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood—gear oil formulated for GDP Portals
- There are no gimmicks and no vents because vents do more harm than good—we know because we tested them
Advanced Gaskets, Seals, and Bearings
Our portals use:- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
-
- Can Am Renegade/Outlander 570 : 2019+
- Can Am Renegade/Outlander 650 XMR : 2022+
- Can Am Renegade/Outlander 850 : 2019+
- Can Am Renegade/Outlande r850 XXC : 2019+
- Can Am Renegade/Outlander 1000 XMR : 2019+
- Can Am Renegade/Outlander 1000 XXC : 2019+
Wheel Requirements:- 18” or larger wheel required
- 18” wheels cannot exceed 4-1/2” backspacing
- 20” wheels cannot exceed 5” backspacing
- Wheels need to have a center hole of at least 3.25" (82.55mm) or require a 1” wheel spacer
